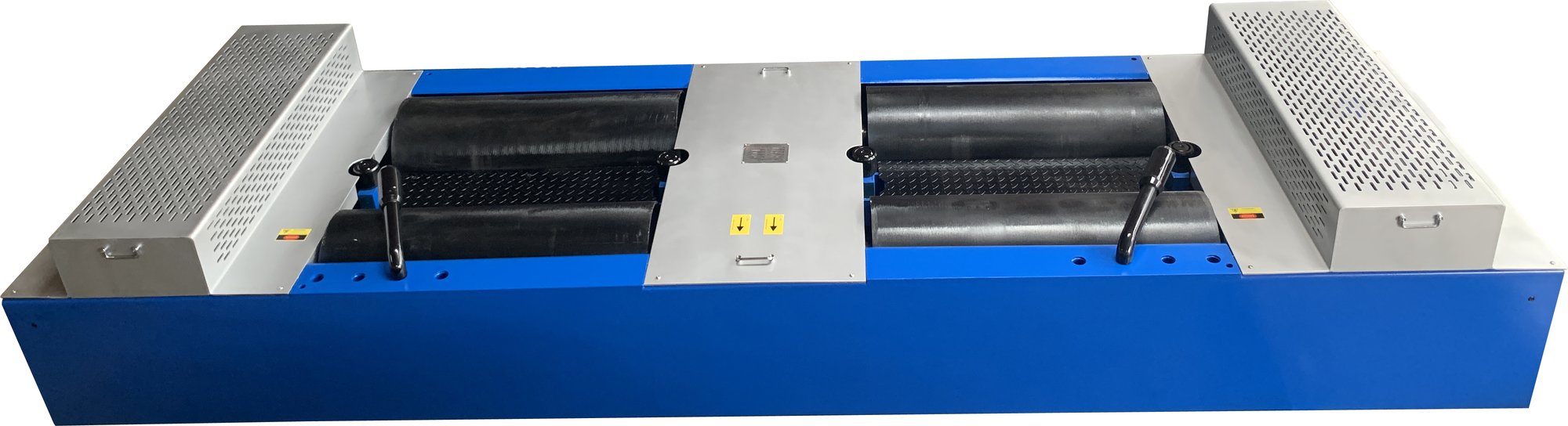

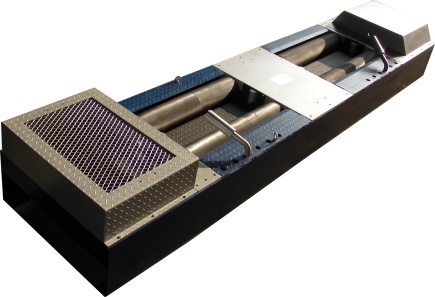

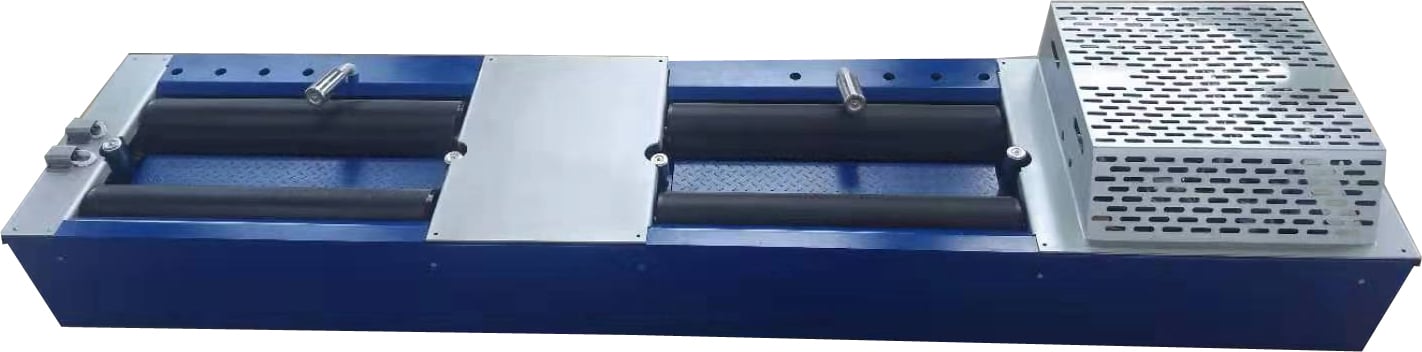

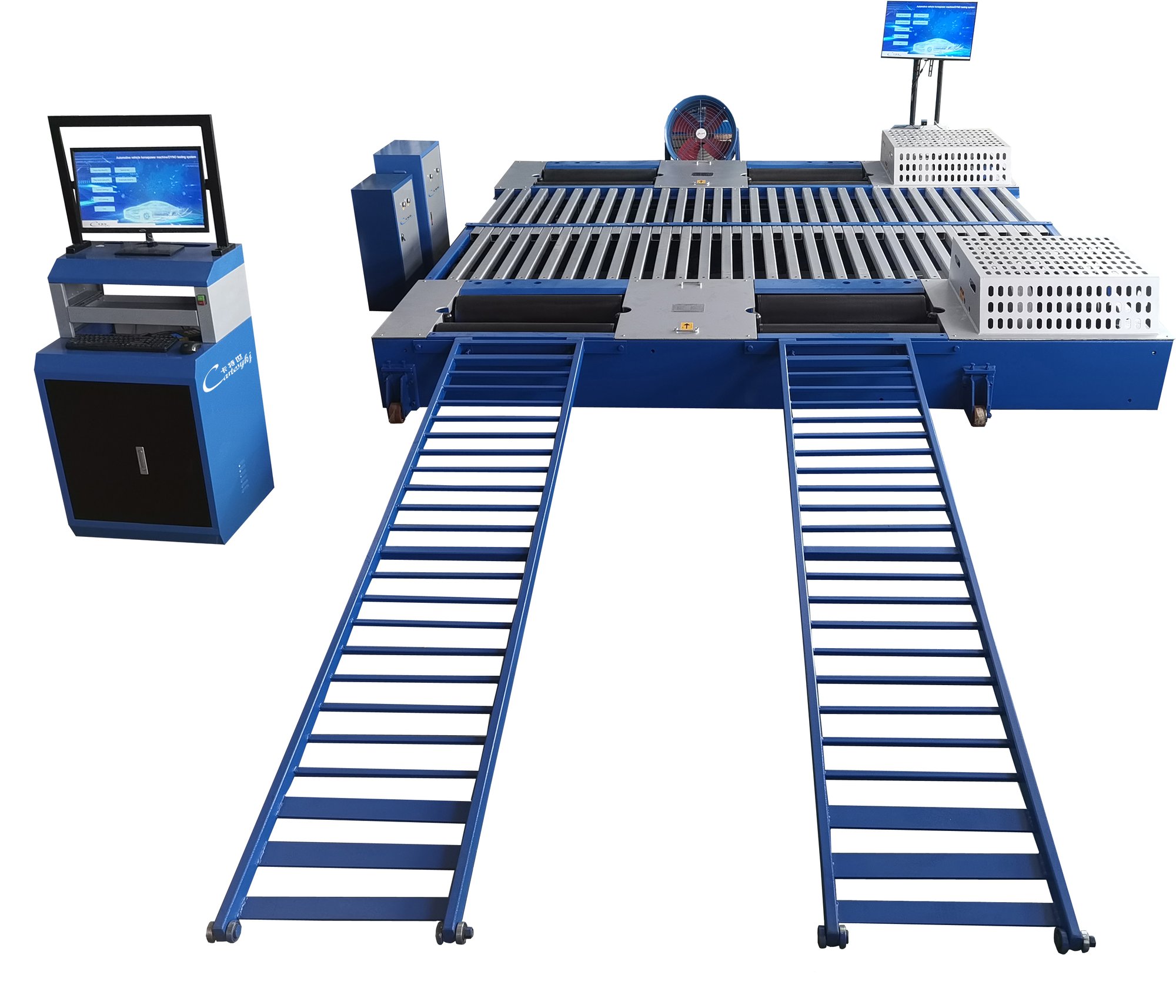

Chassis Dynamometer

This system is designed for comprehensive testing of vehicle dynamics, emissions, and fuel consumption. It supports a wide range of experiments including fuel economy, dynamic performance, and reliability tests—particularly for automatic transmissions and specialized vehicle systems.


CTDCG-3-4WD

  • Rated Axle Load: 4000 kg
  • Max testing axle load: 2000ph
  • Max traction ≥25
  • Roller diameter × length ≥φ216×850mm
  • Inner distance of roller × outer distance :700×2400mm
  • Distance between roller centers ≥437 mm
  • Max.test speed ≥260km/h
  • Test range of wheelbase  2100-3200 mm
  • Wheelbase adjustment range: 0-1100 mm
  • Gas source ≥.0.8Mpa
  • Power Supply: 380V
  • Power absorption device: eddy current dynamometer

CTDCG-13

  • Absorbed power rating: 300KW
  • Max.brake moment (N.m): 3000, air lift
  • Roller diameter × length: 373mm * 1100mm
  • Center distance (mm): 600, with a flywheel

CTDCG-10

  • Absorbed power rating: 250KW
  • Max.brake moment (N.m): 2500, air lift
  • Roller diameter × length: 320mm * 1000mm
  • center distance (mm): 600, with a flywheel

CTDCG-3D

  • Absorbed power rating: 160KW
  • Max.brake moment (N.m): 1600, air lift
  • Roller diameter × length: 216mm * 1000mm
  • center distance (mm): 480, with a flywheel

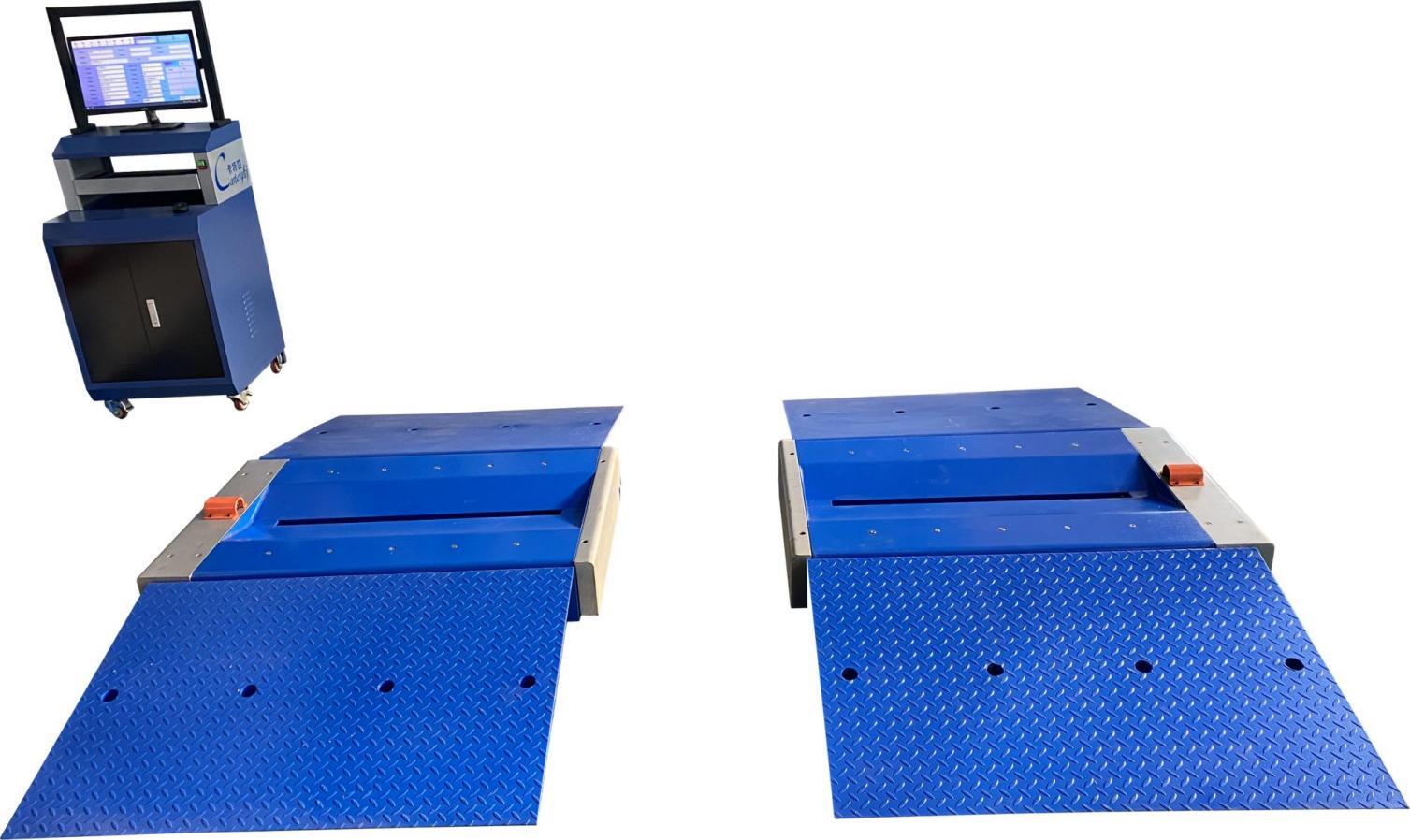

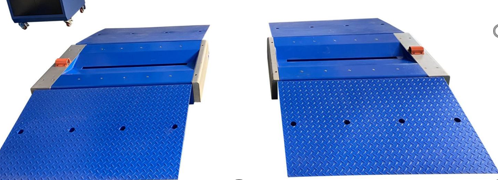

Automated Tire Tread Depth Detection System

This high-precision system automatically measures tire tread depth and alerts for abnormal wear - no manual work or tire removal needed.

Automatic, Pass-Through Scanning - Vehicles are scanned in under 20 seconds without stopping.
High Accuracy - Provides measurement precision up to 0.01 mm through laser and computer vision technology.
Non-Contact, Non-Destructive - No damage or disassembly required.
Customizable Software - Reports and data uploads tailored to user needs.
Tire Change Alerts - Intelligent reminders based on tread wear and usage.
Low Maintenance - Durable, easy-to-maintain design.

CTLT-3

  • Bearing single axle load:  up to 15000kg
  • Tire width range: up to 350mm
  • Tire depth range: up to 25mm
  • Measurement accuracy:   0.01mm
  • Voltage: 220V

CTDCG-10

  • Bearing single axle load:  up to 3000kg
  • Tire width range: up to 350mm
  • Tire depth range: up to 25mm
  • Measurement accuracy:   0.01mm
  • Voltage: 220V

Gas Emissions Analyzers

Portable Emissions Testing Products

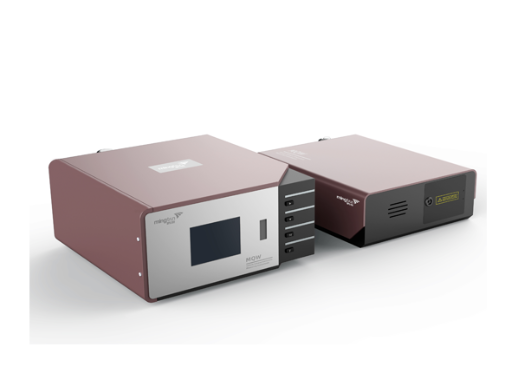

Vehicle Emissions Gas Analyzer

Measure the concentrations of carbon monoxide (CO), hydrocarbons (HC), nitrogen oxides (NOₓ), carbon dioxide (CO₂), and oxygen (O₂) in motor vehicle exhaust. Based on the measured concentrations of CO, CO₂, HC, and O₂, it can also calculate the excess air ratio (λ).

20220802115900_4841

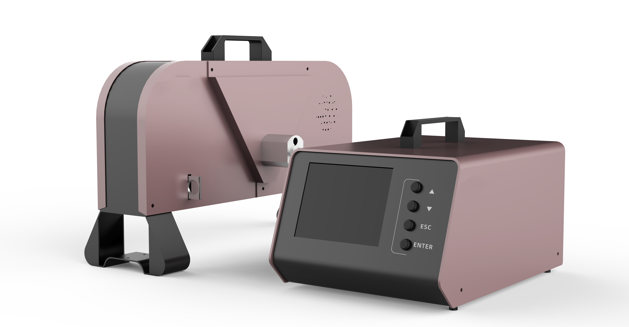

Smoke Opacimeters

  • Uses a sampling (partial-flow) measurement principle to measure the opacity of motor vehicle exhaust.
  • Fast warm up, automatic zero and calibration check.
  • With functions of free acceleration test and dynamic measurement
  • License Plate Number input,500 data storages and intelligent review.
  • RPM and oil temperature measurement.
    RS-232 interface
  • Optional Micro printer and RPM Meter.

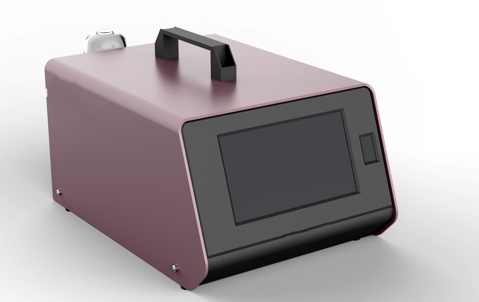

Automotive Exhaust Gas Analyzer

Ideal for idle & two-speed idle emission test

  • Automatic measurement of HC, CO, CO₂, O₂, and NOₓ concentrations
  • Large LCD display for clear data visualization
  • Automatic zero calibration for reliable operation
  • Real-time calculation and display of the Air-Fuel Ratio (λ)
  • Built-in interfaces for RPM and oil temperature measurement
  • Supports license plate input and timestamp recording
  • Compact, lightweight, and portable design

Why Choose US?

lightbulb icon

Personalized solutions

We provide personalized solutions that tailored for you. All of our equipment can be customized to meet local requirements.

bolt icon

Proven technology

We’ve proudly served clients across Europe and Asia for years.

dollar-sign icon

Save your bills

We guaranteeing both reasonable price and high quality in our products and services.

lock icon

Fast delivery

We are a highly agile company. Our team responds quickly, values every customer, and is committed to delivering high-quality products with speed and reliability.

Contact Us

We have more to provide

In addition to the products listed on this product page, we also offer brake dynamometers, vehicle sideslip testers, vehicle suspension performance testers, chassis suspension abnormal noise detectors, and, of course, software solutions.
